Welcome

Welcome to Mudra SDK. This document enables creating your own unique experiences based on the Mudra Band™ and Mudra API. Here we will explain how to use the band as well as interface with your device. Our API includes language bindings for Swift (iOS), Java (Android) and C# (Unity Plugin). You can find links to a sample application for each of iOS, Android or Unity under the Sample Applications section.

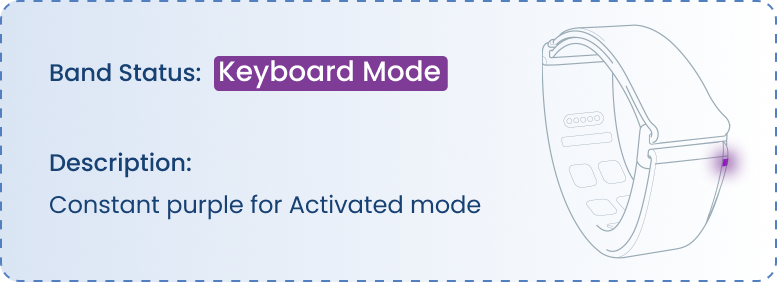

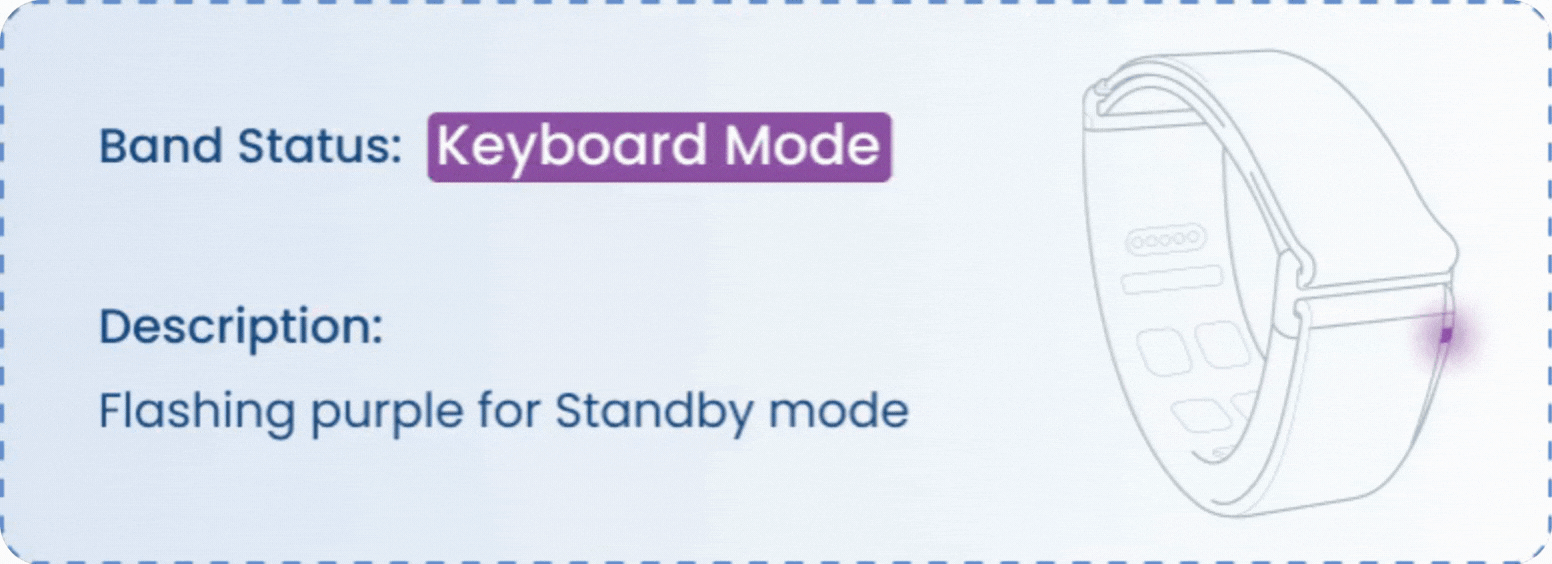

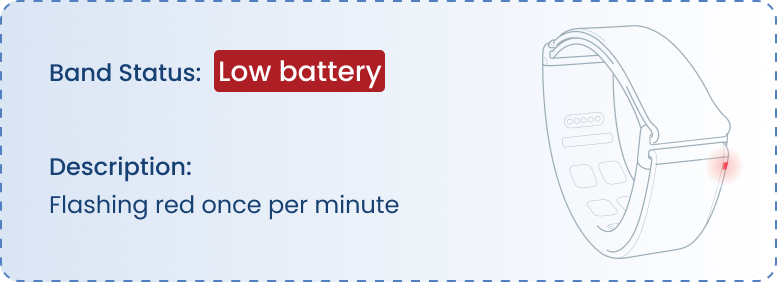

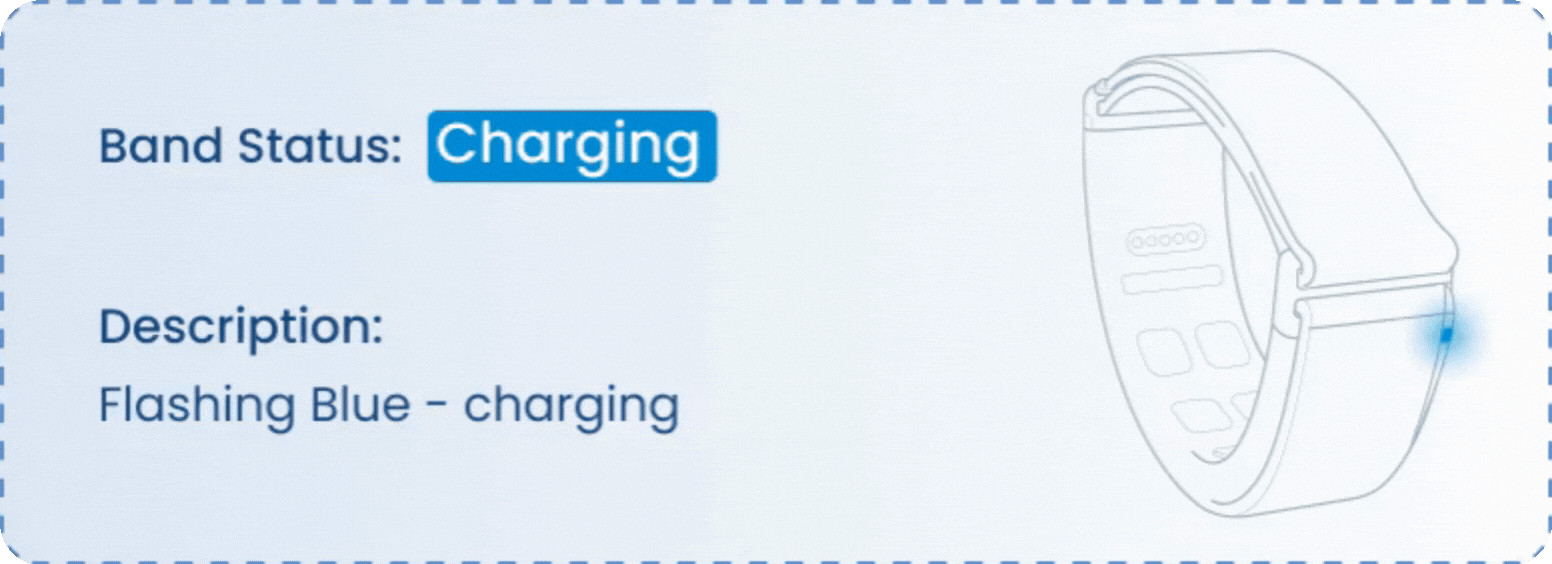

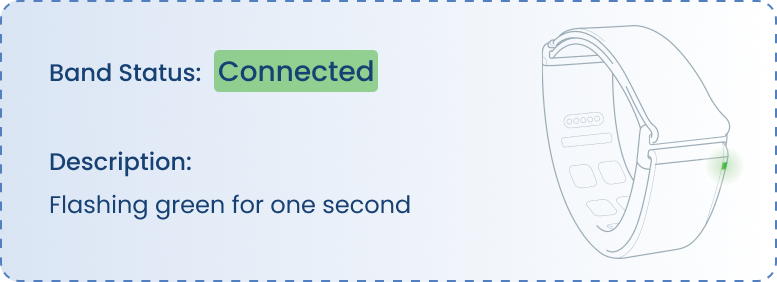

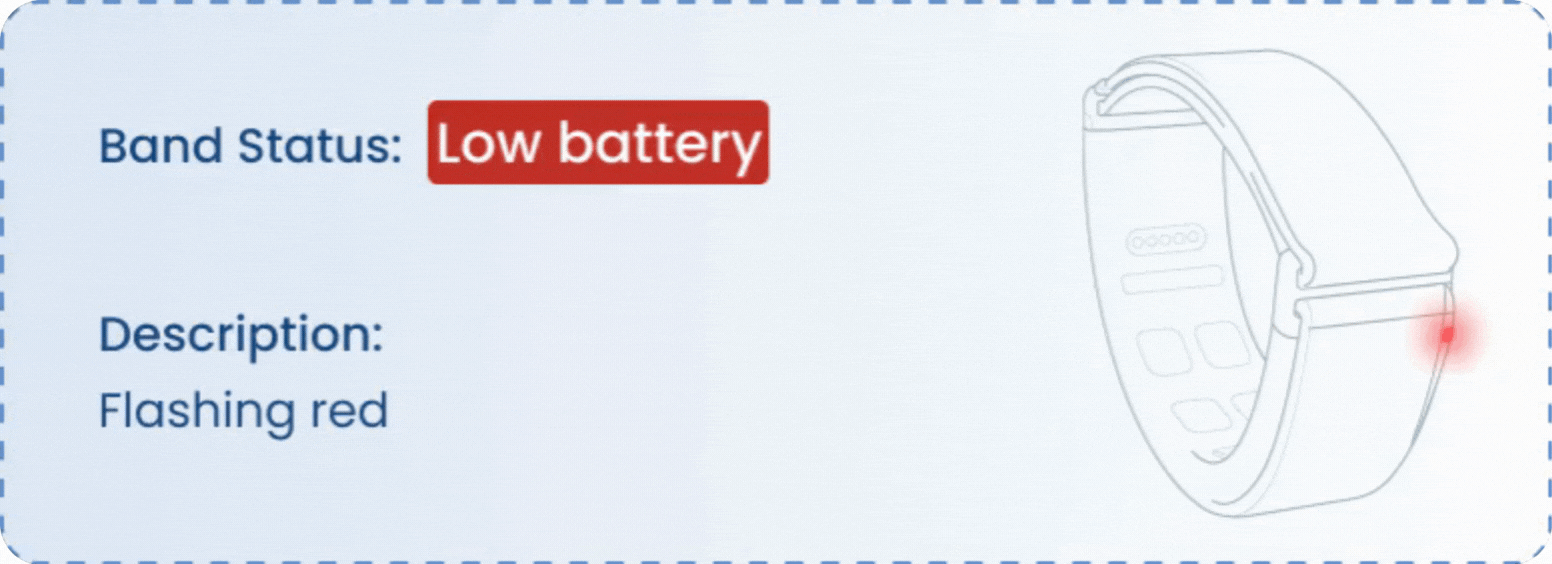

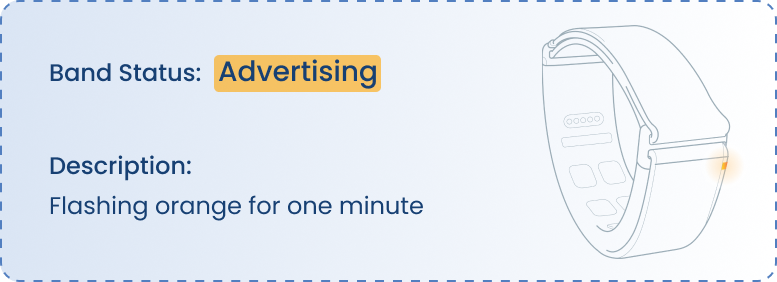

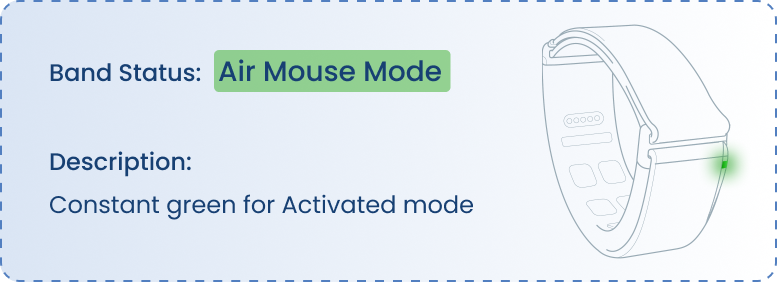

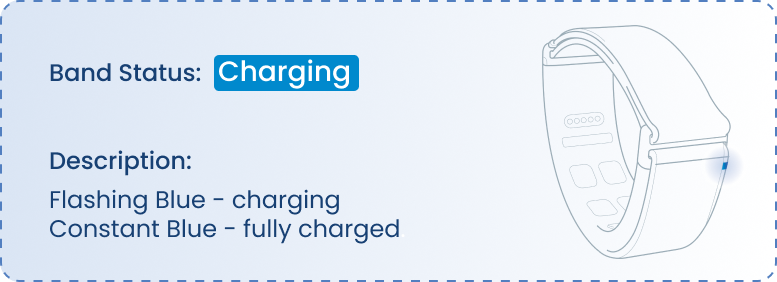

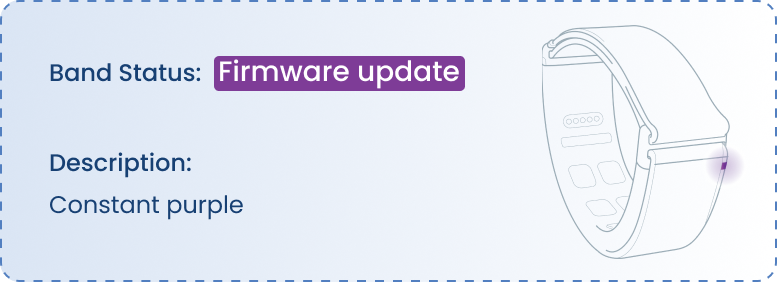

Device Led Status

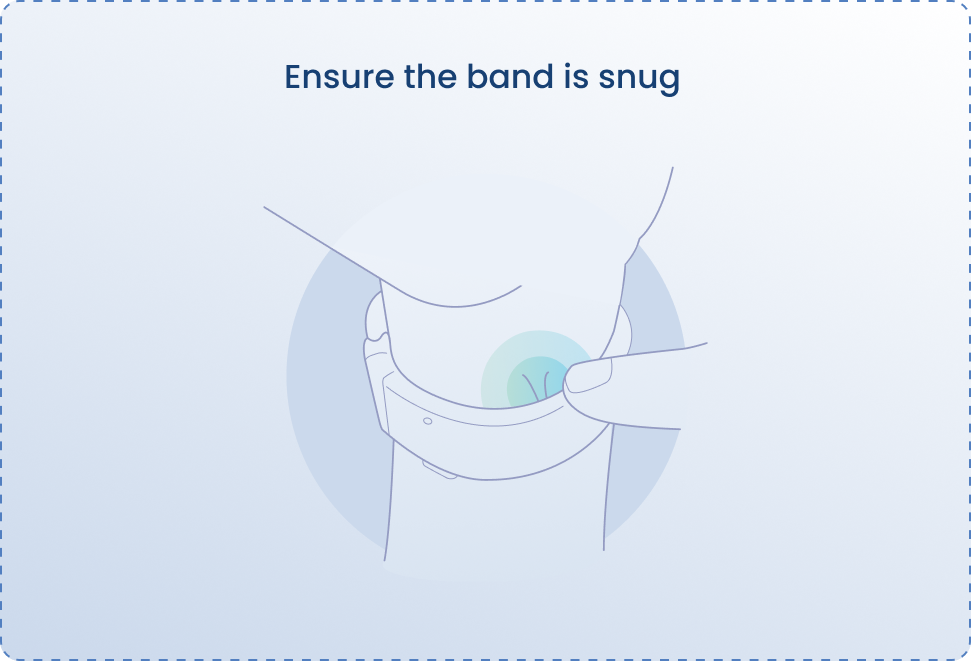

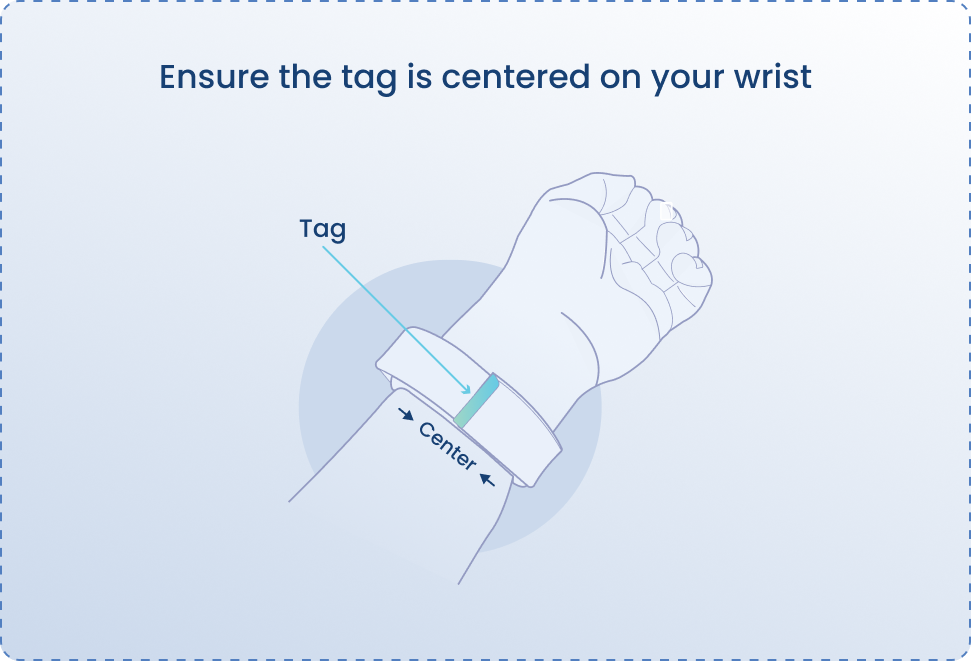

Band Wearing

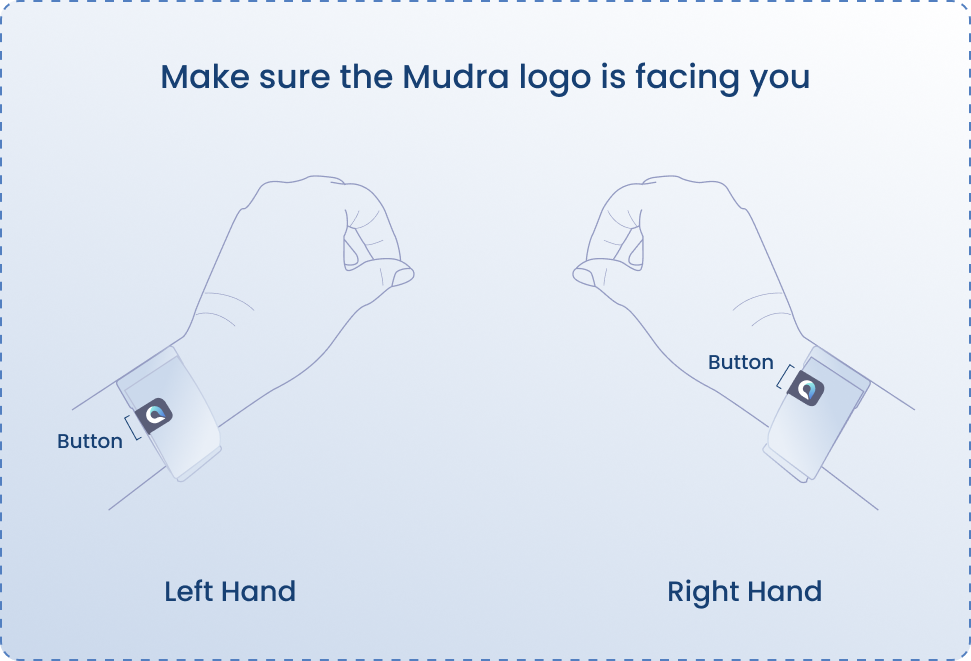

To put on the wristband correctly, make sure to check whether the logo is positioned on the left or right hand.

Access the API

iOS

Download Mudra.framework from the following link : framework
Add to your project in Xcode group/folder named "frameworks".
Add Mudra.framework to this group/folder "frameworks" and sign 'Copy if needed' when adding the framework.

Go to your project -> General tab -> Frameworks, Libraries, And Embedded Content -> Set the value of Mudra.framework to "Embed & Sign"

Go to your project -> Info tab -> Add a new row titled "Called when the bluetooth state is changed.Privacy - Bluetooth Always Usage Description." In the value field, provide the reason for requiring BLE. For example, you could write: "This allows the app to find and connect to your iPhone."

Android

// gradle.properties file:
authToken=<Your Jitpack Token>


// settings.gradle file:
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
        maven { url 'https://jitpack.io'
            credentials { username authToken }}
    }
}


// build.gradle file:
dependencies {
    .
    .
    .
    implementation 'com.github.wearable-devices:Dev_MudraAndroidSDK:1.5.11.18'
}

// manifest file:
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />

To access the API you must first generate an access token.
Navigate to https://jitpack.io/, Sign in using your GitHub account.
Click on your Git-hub username, on top right of the page.
Copy the access token shown on the first line and add it to your project gradle.properties file:
Add the repository to your project settings.gradle file:
Add BLE permission to your project manifest.xml file:
Implement the SDK to your project gradle.build file inside the dependencies:

Unity

Go to Mudra/Mudra Setup in the toolbar
The Mudra Plugin depends on the new Unity input system. Clicking 'Install' will install the new input system.

The MudraUnity Plugin currently does not support standalone builds. Please select either iOS or Android as your build target. You can use the dedicated buttons in the Mudra Setup window for this purpose.

If the chosen build target is Android, press the 'Fix' buttons to modify the relevant build settings.

Now, press 'EnableMudra' to activate all the MudraPlugin scripts.

Licenses

Mudra.getLicenseForEmailFromCloud(email: "-----@------") { success , errorResult in
    if success {
        print("licenses set successfully.")
    } else {
        print("failed to set licenses : \(errorResult)")
    }

}

Mudra.getInstance().getLicenseForEmailFromCloud("-----@------", (success, errorResult) -> {
    if( success ) {
        Log.d(TAG , "licenses set successfully.");
    } else {
        Log.d(TAG , "failed to set licenses : " + errorResult +".");
    }
});

To utilize certain features of the SDK, a license is required.

Sign up a new user for the MudraBand application on iOS.
Contact Tom at tom.y@wearabledevices.co.il to obtain licenses for using features in the SDK.

License	Features
Main	Pressure, Gesture recognition, Air Mouse, ACC NORM
RawData	SNC, IMU GYRO, IMU ACC

Initialization and Connection

iOS

//ContentViewModel that implements the MudraDelegate
import Mudra
import Foundation

class ContentViewModel : ObservableObject {
    static let shared = ContentViewModel()
    @Published var contentModel : ContentModel = ContentModel()

}

extension ContentViewModel: MudraDelegate {
    func onBluetoothStateChanged(_ state: Bool) {
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }

    func onDeviceConnectedByIos(_ device: MudraDevice) {
        //Event : when mudra device connects to the iPhone operating system "iOS"
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }

    func onDeviceDisconnectedByIos(_ device: MudraDevice) {
        //Event : when mudra device disconnects from the iPhone operating system "iOS"
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }

    func onMudraDeviceConnected(_ device: MudraDevice) {
        //Event : when mudra device connects to the app
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }

    func onMudraDeviceDisconnected(_ device: MudraDevice) {
        //Event : when mudra device disconnects from the app
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }

    func onBatteryLevelChanged(_ device: MudraDevice) {
        //Event : when battery level changed for connected device
        DispatchQueue.main.async {
            //Update the UI Here!
        }
    }
}

//--------------------------------------------------------------------------------------------------------------------

// AppDelegate
import Mudra
import UIKit

class AppDelegate: UIResponder, UIApplicationDelegate, ObservableObject {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        print("application launched")
        self.setMudraDelegate()  //<--
        self.setLicense()        //<--
        self.initBluetouth()     //<--
        return true
    }

    func setMudraDelegate() {
        Mudra.shared.delegate = ContentViewModel.shared  //<-- "ContentViewModel which implements the MudraDelegate"
    }

    func setLicense() {
        // Set your licenses (sent by Wearable Devices for expanded features)
        Mudra.getLicenseForEmailFromCloud(email: "-----@------") { success , errorResult in
            if success {
                print("licenses set successfully.")
            } else {
                print("failed to set licenses : \(errorResult)")
            }

        }
    }

    func initBluetouth() {
        print("initBlueTouth")
        Mudra.shared.initBluetouth()
    }
}

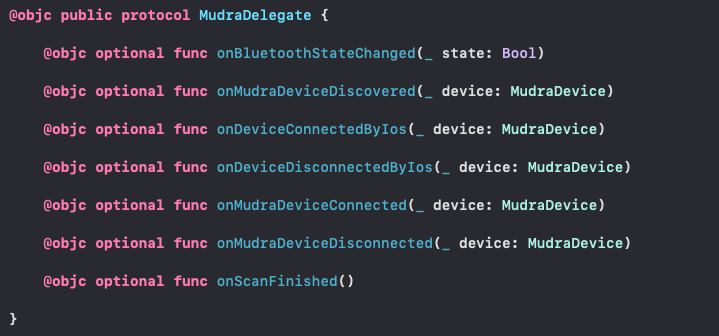

The iOS SDK supports development in both Objective-C and Swift through the implementation of the MudraDelegate Protocol. Note that the API supports multiple devices; when the 'device' parameter is received in the following functions, it refers to this specific device.

Event	Description
func onBluetoothStateChanged(_ state: Bool)	Called when the bluetooth state is changed. When the bluetooth is turened on/off the state becomes true/false.
func onDeviceConnectedByIos(_ device: MudraDevice)	Called for each device which appeared as connected on the iOS BLE settings. This callback is called right after the bluetooth is finished Initializing (2).
func onDeviceDisconnectedByIos(_ device: MudraDevice)	Called when a device is disconnected by the iOS.
func onMudraDeviceConnected(_ device: MudraDevice)	Called when a device is connected to the application.
func onMudraDeviceDisconnected(_ device: MudraDevice)	Called when a device is disconnected by the application.
func onBatteryLevelChanged(_ device: MudraDevice)	Called when the battery level is changed.

Start by initializing bluetooth environment and setting up the system :
- Mudra.shared.delegate = ContentViewModel.shared
- Mudra.getLicenseForEmailFromCloud(email: "-----@------") { success , errorResult in }
- Mudra.shared.initBluetouth()
In order to connect or disconnect a device to the application :

Description	Function
To connect a device call the connect function	device.connect()
To disconnect a device call the disconnect function	device.disconnect()

Android

The Android SDK supports development with Java through the implementation of the MudraDelegate Interface. Note that the API supports multiple devices; when the 'device' parameter is received in the following functions, it refers to this specific device.

public class MainActivity extends AppCompatActivity {

    private ActivityMainBinding binding;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        binding = ActivityMainBinding.inflate(getLayoutInflater());
        setContentView(binding.getRoot());
        initializeMudra();
    }

    private void initializeMudra()
    {
        Mudra.getInstance().requestAccessPermissions(this);
        Mudra.getInstance().getLicenseForEmailFromCloud("-----@------", (success, errorResult) -> {
            if( success ) {
                Log.d(TAG , "licenses set successfully.");
            } else {
                Log.d(TAG , "failed to set licenses : " + errorResult +".");
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.menu_main, menu);
        return true;
    }
}

Event	Description
public void onDeviceDiscovered(MudraDevice mudraDevice)	Called when a device is discoverd by the application.
public void onDeviceConnected(MudraDevice mudraDevice)	Called when a device is connected to the application.
public void onDeviceDisconnected(MudraDevice mudraDevice)	Called when a device is disconnected by the application.

Start by initializing Mudra environment and setting up the system inside the MainActivity:
1. Mudra.getInstance().requestAccessPermissions(this);
2. Mudra.getInstance().getLicenseForEmailFromCloud("-------@--------", (success, errorResult) -> { });
In order to connect, disconnect, scan, stop scanning and get paired devices for a device to the application :

Description	Function
To connect a device call the connect function	mudraDevice.connect(Context context)
To disconnect a device call the disconnect function	mudraDevice.disconnect()
To scan for a Mudra device	Mudra.getInstance().scan(Context context);
To stop scaning for a Mudra device	Mudra.getInstance().stopScan();
To get the paried Mudra devices to the OS	Mudra.getInstance().getBondedDevices(Context context);

//--------------------------------------------------------------------------------------------------------------------
private void setMudraDelegate() {
    Mudra.getInstance().setMudraDelegate(new MudraDelegate() {
        @Override
        public void onDeviceDiscovered(MudraDevice mudraDevice) {

        }

        @Override
        public void onDeviceConnected(MudraDevice mudraDevice) {

        }

        @Override
        public void onDeviceDisconnected(MudraDevice mudraDevice) {

        }
    });
}

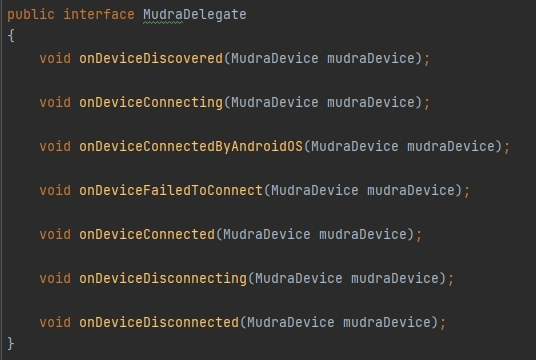

To listen to MudraDelegate callbacks you need to set the MudraDelegate by : Mudra.getInstance().setMudraDelegate(MudraDelegate mudraDelegate);

Unity

A MudraManager is required in the scene. To create one, go to Mudra/MudraManager in the toolbar.
When the SDK connects to the device, it will create a new device in the Unity input system. To receive input values, you need to set up both an input action asset and a script to listen to the messages. The plugin package includes both by default.
These are all the input bindings for the MudraDevice. You can find them under 'Other/MudraDevice' when setting up a new action.

You will also need to add a PlayerInput Component to ensure the inputs function properly.
Here is an example of a fully functional MudraManager and Inputs setup.

The MudraManager serves as your connection to the SDK and it performs several important functions.

Function	Description
public void SetAirmouseState(bool state)	Sets airmouse on/off.
public void SetScale(int scale)	Sets the pressure scale.
public void SetPressureSensitivity(int sens)	Sets the pressure sensitivity.
public void SetAirMouseSpeed(int speed)	Set the airmouse speed.
public void SetHand(int hand)	Set the main hand of the user.

General

MudraDevice properties

mudraDevice.battery // Int, Indicating the device's battery level.

mudraDevice.firmwareVersion // Optinal String, Indicating the device's firmware version, or **nil** in case there is no firmware version.

mudraDevice.serialNumber // Optinal Int, Indicating the device's serial number, or **nil** in case there is no serial number.

mudraDevice.bandNumber // Optinal String, Indicating the device's bandNumber, or **nil** in case there is no band number.

mudraDevice.getBatteryLevel() // int, Returns the device's battery level.

mudraDevice.getFirmwareVersion() // String, Returns the device's firmware version, returns **empty string** in case there is no firmware version.

mudraDevice.getSerialNumber() // long, Returns the device's the device's serial number, or **0** in case there is no serial number.

mudraDevice.getDeviceNumberByName() // String, Returns the device's band number, or **0** in case there is no band number.

Once you have acquired the MudraDevice, you can request additional information from the device by accessing the following properties:

General Events

mudraDevice.setOnChargingStatusChanged { isCharging in

}

mudraDevice.setOnBatteryLevelChangedCallBack{ batteryLevel in

}

mudraDevice.setOnFirmwareVersionReceivedCallBack{ version in

}

mudraDevice.setOnChargingStatusChange(new OnChargingStatusChanged() {
    @Override
    public void run(boolean isCharging) {

    }
});

mudraDevice.setOnFirmwareVersionRead(new OnFirmwareVersionRead() {
    @Override
    public void run(String firmware) {

    }
});

mudraDevice.setOnBatteryLevelChanged(new OnBatteryLevelChanged() {
    @Override
    public void run(int batteryLevel) {

    }
});

Once you have obtained the MudraDevice, you can register to receive notifications for various events that occur on the device:

Charging State Change: This event is triggered whenever the MudraDevice is connected to or disconnected from the charger.
Battery Level Change: This event occurs whenever there is a change in the battery level.
Firmware Version Update: This event is triggered when the firmware version has been successfully retrieved.

Set Hand

//To set hand
mudraDevice.hand = .Right
mudraDevice.hand = .Left

//To set hand
mudraDevice.setHand(HandType.RIGHT);
mudraDevice.setHand(HandType.LEFT);

When the device is connected, you need to update its settings via the API depending on whether you wear the band on your left or right hand.

AI_Models

//To change the algorithm model
mudraDevice.setModelType(.NeuralClicker);
mudraDevice.setModelType(.Embedded);

//To change the algorithm model
mudraDevice.setModelType(ModelType.NeuralClicker);
mudraDevice.setModelType(ModelType.Embedded);

It is possible to change the AI algorithem that runs "Under the hood".

Available AI_Models :
1. NeuralClicker
2. Embedded

Sensors

SNC

//To enable register, for the callback.
mudraDevice.setOnSncPackageReady{ (timestamp,data) in
    // data's length is 24
    // [0-7)   is SNC_1
    // [8-15)  is SNC_2
    // [15-23) is SNC_3
}

//To disable put nil.
mudraDevice.setOnSncPackageReady(nil)

//To check if the callback is set.
mudraDevice.onSncBlock != nil // returns true in case the callback is set, false otherwise.

//To enable register, for the callback.
mudraDevice.setOnSncReady(new OnSncReady() {
    @Override
    public void run(long timestamp, float[] data) {
        // data's length is 24
        // [0-7)   is SNC_1
        // [8-15)  is SNC_2
        // [15-23) is SNC_3

    }
});

//To disable put null.
mudraDevice.setOnSncReady(null)

//To check if the callback is set.
mudraDevice.isOnSncCallbackSet(); // returns true in case the callback is set, false otherwise.

Requirements :
1. License - RawData

Functionality for exposing raw SNC (Surface Nerve Conductance) sensor values. This function may incur an additional fee (We will send a license with instructions for those who are interested in this functionality).

Gyroscope

//To enable register, for the callback.
mudraDevice.setImuGyroReady{ (timestamp,data) in
        // data's length is 24
        // [0, 3, 6, 9 , 12, 15, 18, 21]   is GYRO_1
        // [1, 4, 7, 10, 13, 16, 19, 22]   is GYRO_2
        // [2, 5, 8, 11, 14, 17, 20, 23]   is GYRO_3
}

//To disable put nil.
mudraDevice.setImuGyroReady(nil)

//To check if the callback is set.
mudraDevice.onImuGyroBlock != nil // returns true in case the callback is set, false otherwise.

//To enable register, for the callback.
mudraDevice.setOnImuGyroReady(new OnImuGyroReady() {
        @Override
        public void run(long timestamp, float[] data) {
        // data's length is 24
        // [0, 3, 6, 9 , 12, 15, 18, 21]   is GYRO_1
        // [1, 4, 7, 10, 13, 16, 19, 22]   is GYRO_2
        // [2, 5, 8, 11, 14, 17, 20, 23]   is GYRO_3

        }
});

//To disable put null.
mudraDevice.setOnImuGyroReady(null)

//To check if the callback is set.
mudraDevice.isOnImuGyroCallbackSet(); // returns true in case the callback is set, false otherwise.

Requirements :
1. License - RawData

Functionality for exposing raw GYRO (Gyroscope) sensor values. This function may incur an additional fee (We will send a license with instructions for those who are interested in this functionality).

Accelerometer

//To enable register, for the callback.
mudraDevice.setImuAccRawReady{ (timestamp,data) in
        // data's length is 24
        // [0, 3, 6, 9 , 12, 15, 18, 21]   is ACC_1
        // [1, 4, 7, 10, 13, 16, 19, 22]   is ACC_2
        // [2, 5, 8, 11, 14, 17, 20, 23]   is ACC_3

}

//To disable put nil.
mudraDevice.setImuAccRawReady(nil)

//To check if the callback is set.
mudraDevice.onImuAccRawBlock != nil // returns true in case the callback is set, false otherwise.

//To enable register, for the callback.
mudraDevice.setOnImuAccRawReady(new OnImuGyroReady() {
        @Override
        public void run(long timestamp, float[] data) {
        // data's length is 24
        // [0, 3, 6, 9 , 12, 15, 18, 21]   is ACC_1
        // [1, 4, 7, 10, 13, 16, 19, 22]   is ACC_2
        // [2, 5, 8, 11, 14, 17, 20, 23]   is ACC_3

        }
});

//To disable put null.
mudraDevice.setOnImuAccRawReady(null)

//To check if the callback is set.
mudraDevice.isOnImuAccRawCallbackSet(); // returns true in case the callback is set, false otherwise.

Requirements :
1. License - RawData

Functionality for exposing raw ACC (Accelerometer Characterization Capability) sensor values. This function may incur an additional fee (We will send a license with instructions for those who are interested in this functionality).

Accelerometer Norm

//To enable register, for the callback.
mudraDevice.setOnImuAccNormPackageReady{ (timestamp,data) in

}

//To disable put nil.
mudraDevice.setOnImuAccNormPackageReady(nil)

//To check if the callback is set.
mudraDevice.onImuAccNormBlock != nil // returns true in case the callback is set, false otherwise.

//To enable register, for the callback.
mudraDevice.setOnImuAccNormReady(new OnImuAccNormReady() {
        @Override
        public void run(long timestamp, float[] floats) {

        }
});

//To disable put null.
mudraDevice.setOnImuAccNormReady(null)

//To check if the callback is set.
mudraDevice.isOnImuAccNormCallbackSet(); // returns true in case the callback is set, false otherwise.

Requirements :
1. License - Main

Returns the Root Mean Square (RMS) value of the three-axis (X, Y, Z) acceleration measurements, which are normalized for gravity. Removing the effects of gravity from the acceleration data, providing a more accurate representation of the band motion in three dimensions.

Features

Pressure Level

//To enable register, for the callback.
mudraDevice.setOnProportionalReady{ (pressure) in

}

//To disable put nil.
mudraDevice.setOnProportionalReady(nil)

//To check if the callback is set.
mudraDevice.onProportionalBlock != nil // returns true in case the callback is set, false otherwise.

//To enable register, for the callback.
mudraDevice.setOnPressureReady(new OnPressureReady() {
    @Override
    public void run(float pressure) {

    }
});

//To disable put null.
mudraDevice.setOnPressureReady(null)

//To check if the callback is set.
mudraDevice.isOnPressureReadySet(); // returns true in case the callback is set, false otherwise.

Requirements :
1. License - Main
2. AI_Model - Embedded

In order to esstimate the amount of finger tip pressure, use the descriped API. The returned pressure parameter indecates 1.0 for the most amount of pressure while 0.0 indecates the lowest.

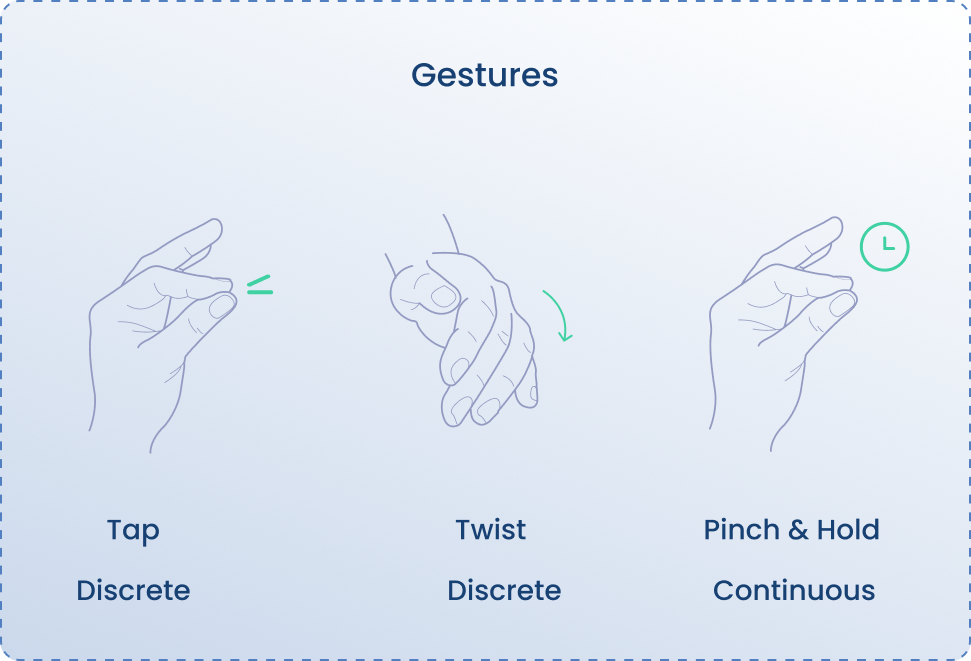

Gesture Recognition

//To register for tap event:
mudraDevice.setOnAirMouseButtonChanged{ buttonEvent in
    // buttonEvent == .Release, in case release event
    // buttonEvent == .Press, in case press event
}

//To register for tap event:
lastConnectedDevice.setOnAirMouseButtonChanged(new OnAirMouseButtonChanged() {
    @Override
    public void run(AirMouseCommand command) {
        // buttonEvent == AirMouseCommand.Release, in case release event
        // buttonEvent == AirMouseCommand.Press, in case press event
    }
});

Requirements :
1. License - Main
2. AI_Model - NeuralClicker

To register for an event that is triggered whenever the chosen model detects a click or release, you can use the following approach:

mudraDevice.setAirMousePointerActive(active: true)   // to enable the air-mouse pointer
mudraDevice.setAirMousePointerActive(active: false)  // to disbale the air-mouse pointer

//In order to check if the air-mouse pointer is enabled
mudraDevice.isAirMousePointerActive

mudraDevice.setAirMousePointerActive(true); // to enable the air-mouse pointer
mudraDevice.setAirMousePointerActive(false); // to disbale the air-mouse pointer

//In order to check if the air-mouse pointer is enabled
mudraDevice.isAirMousePointerActive()

Requirements :
1. License - Main

To activate the Air-Mouse-Pointer, you need to execute the following command:

HID commands

Mouse Left Button Action

//To trigger a "Press" or "Release" action in your application, you can use the appropriate API methods provided by the mudraDevice. Here's how you can implement them:
mudraDevice.sendAirMouseButton(.Release); // This line sends a release command
mudraDevice.sendAirMouseButton(.Press);   // This line sends a press command

//To trigger a "Press" or "Release" action in your application, you can use the appropriate API methods provided by the mudraDevice. Here's how you can implement them:
mudraDevice.sendAirMouseButton(AirMouseCommand.Release); // This line sends a release command
mudraDevice.sendAirMouseButton(AirMouseCommand.Press);   // This line sends a press command

Using mouse profile, supporting left button press and release.

Experiences

Air-Touch

mudraDevice.setAirMousePointerActive(active: true)   // To activate the Air-Mouse-Pointer
mudraDevice.setAirMousePressReleaseActive(active: true)   // To activate press and release


mudraDevice.setAirMousePointerActive(active: false)  // To deactivate the Air-Mouse-Pointer
mudraDevice.setAirMousePressReleaseActive(active: false)   // To deactivate press and release


//To verify if these commands are enabled, execute the following command:
mudraDevice.isAirMousePointerActive
mudraDevice.isAirMousePressReleaseActive

mudraDevice.setAirMousePointerActive(true); // To activate the Air-Mouse-Pointer
mudraDevice.setAirMousePressReleaseActive(false); // To activate press and release


mudraDevice.setAirMousePointerActive(true);  // To deactivate the Air-Mouse-Pointer
mudraDevice.setAirMousePressReleaseActive(false);   // To deactivate press and release


//To verify if these commands are enabled, execute the following command:
mudraDevice.isAirMousePointerActive()
mudraDevice.isAirMousePressReleaseActive()

Requirements :
1. License - Main
The "Air Touch" experience encompasses the following features:
1. Navigation: Utilizes a pointer mode for on-screen navigation.
2. Gesture Recognition: Recognizes tapping gestures for interaction.
3. Pressure Level: There is no pressure sensitivity involved in the interaction.
4. HID Commands: Using mouse profile, supporting left button press and release.

Enable or disable the air touch.

When the Air-Touch is enabled, the device start to simulate mouse actions like clicks or movements. The device then sends the clicks and movement to any operating system using the HID (Human Interface Device) protocol.

Sample Applications

Android Sample Application gitHub : AndroidAppExample
iOS Sample Application gitHub : iOSAppExample

Troubleshooting

Problem	OS	Solution
Mudra does not connect to host device	Android	Check your Bluetooth version, we recommend 4.2 and above.
Mudra does not connect to host device	All	Check if your device's LED flashes red, if so recharge (LED will flash blue)
Mudra gestures are not correctly recognize	All	Make sure that the electrodes are in contact with your skin.
Missing dll error	Unity	Make sure installation created an environment variable path and unpacked the dlls inside. If not, try running Setup.msi as administrator

Please contact support@wearabledevices.co.il for any additional questions or suggestions.

Welcome

Device Led Status

Band Wearing

Access the API

iOS

Android

Unity

Licenses

Initialization and Connection

iOS

Android

Unity

General

MudraDevice properties

General Events

Set Hand

AI_Models

Sensors

SNC

Gyroscope

Accelerometer

Accelerometer Norm

Features

Pressure Level

Gesture Recognition

Navigation

HID commands

Mouse Left Button Action

Experiences

Air-Touch

Sample Applications

Troubleshooting
